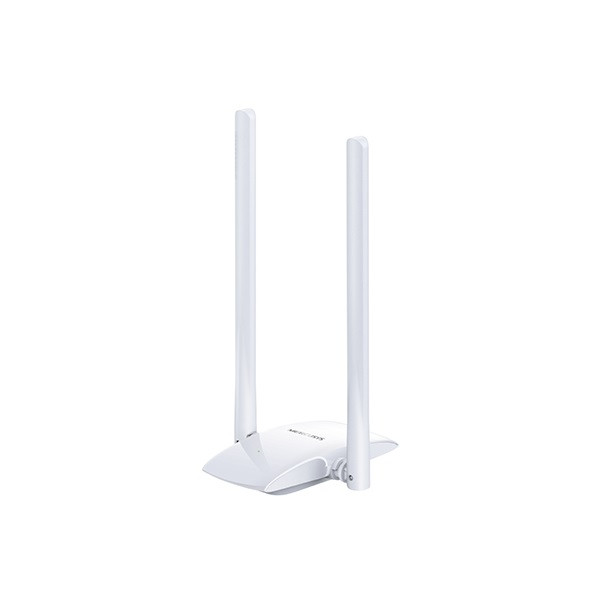

MERCUSYS Wireless Adapter USB N-es 300Mbps, MW300UH

External

4.46 × 2.51 × 0.85 in. (without antennas)

4.46 × 3.96 × 7.92 in. (with vertical antennas)

113.2 × 63.8   × 21.7 mm  (without antennas)

113.2 × 100.5 × 201.1 mm(with vertical antennas)

11n: Up to 300 Mbps (Dynamic)

11g: Up to 54 Mbps (Dynamic)

11b: Up to 11 Mbps (Dynamic)

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

2.400 - 2.4835 GHz

300M: -68 dBm@10% PER

270M: -68 dBm@10% PER

144M: -71 dBm@10% PER

130M: -71 dBm@10% PER

54M: -74 dBm@10% PER

11M: -86 dBm@8% PER

6M: -90 dBm@10% PER

1M: -94 dBm@8% PER

Micro USB 2.0

CE, ROHS

300 Mbps High Gain Wireless USB Adapter (MW300UH)

Quick Installation Guide

Resource CD

USB Cable (Micro USB to USB A)

Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)

Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)

Operating humidity: 10% ~ 90% Non-Condensing

Storage humidity: 5% ~ 90% Non-Condensing

≤20 dBm (EIRP)

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Windows 10/8.1/8/7/XP (32/64 bit)
