POE Tápegység nélkül!
Kompatibilis POE táp: U-POE-AT

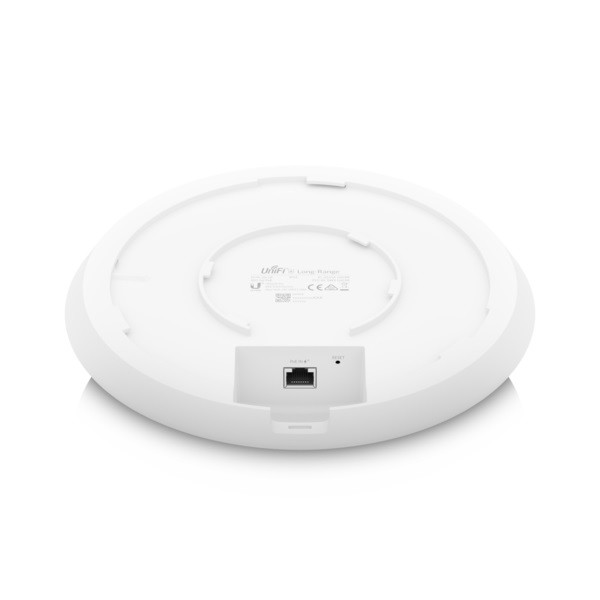

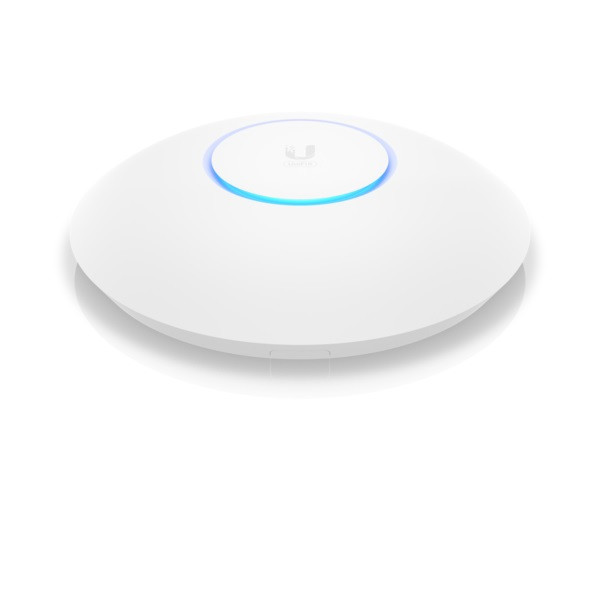

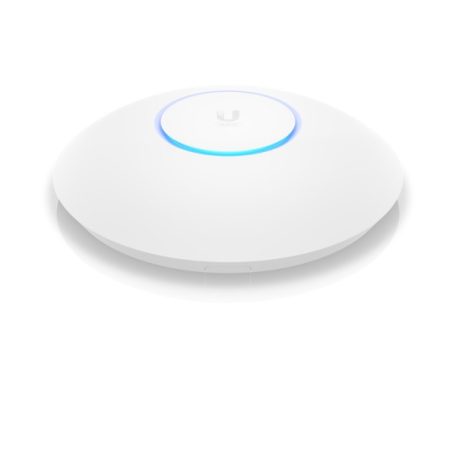

U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features:
-
- 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
- Four-stream high-efficiency Wi-Fi 6 technology
- 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
- 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
- Powered with 802.3at PoE (PoE injector not included)
| Mechanical |
| Dimensions |
O220 x 48 mm (O8.66 x 1.89") |
| Weight |
Without Mount: 800 g (1.76 lb)
With Mount: 930 g (2.05 lb) |
| Enclosure Material |
Plastic |
| Mounting Material |
SGCC Steel |
| Weatherproofing |
IP54 |
| Hardware |
| Processor Specs |
Dual-Core® Cortex® A53 at 1.35 GHz |
| Memory Information |
512 MB |
| Management Interface |
Ethernet |
| Networking Interface |
(1) 1 Gbps Ethernet RJ45 |
| Button |
Factory Reset |
| LEDs |
RGB |
| Power Method |
PoE+, Passive PoE (48V) |
| Power Supply |
UniFi PoE Switch
48V, 0.5A PoE Adapter (Not Included) |
| Supported Voltage Range |
44 to 57VDC |
| Max. Power Consumption |
16.5W |
Max. TX Power
2.4 GHz
5 GHz |
26 dBm
26 dBm |
MIMO
2.4 GHz
5 GHz |
4 x 4
4 x 4 |
Throughput Speeds
2.4 GHz
5 GHz |
600 Mbps
2400 Mbps |
Antenna Gain
2.4 GHz
5 GHz |
4 dBi
5.5 dBi |
| Mounting |
Wall/Ceiling (Kits Included) |
| Operating Temperature |
-30 to 60° C (-22 to 140° F) |
| Operating Humidity |
5 - 95% Noncondensing |
| Certifications |
CE, FCC, IC |
| Software |
| Wi-Fi Standards |
802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
| Wireless Security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)
*Supported With Upcoming Controller Versions
|
| BSSID |
8 per Radio |
| VLAN |
802.1Q |
| Advanced QoS |
Per-User Rate Limiting |
| Guest Trafc Isolation |
Supported |
| Concurrent Clients |
300+ |
| Supported Data Rates (Mbps) |
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (Wi-Fi 4) |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (Wi-Fi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (Wi-Fi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
